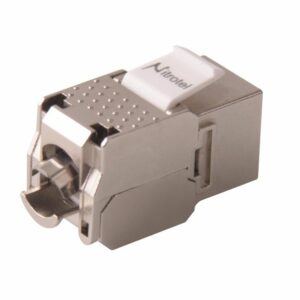

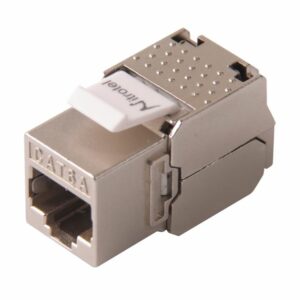

Category 6a, RJ45, Keystone Jack Module, Toolless – Shielded
Overview
Nitrotel EngineerPro® Shielded Cat.6A keystone jacks lead you to the gateway that expedites 10GB over copper solution providing superior protection from Electromagnetic Interference (EMI), Radio Frequency Interference (RFI), signal insolation and excellent alien crosstalk (AXT) suppression. Patented Printed Circuit Board (PCB) is designed to deliver excellent headroom beyond 500MHz. UL- certifified EngineerPro® shielded jacks achieve ISO/IEC approved channel requirements for Class EA and exceed EIA/TIA-568.2-D specifications.
Key Features
- Backward compatible.
- Compliant with EIA/TIA-568-C.2 Cat6A connecting hardware specifications.
- Insertion life: 750 cycles minimum.
- 50u” gold plated contacts.
- Robust die-cast housing.
- 270 wide-angle hinge provides easy access and termination.
- Tooless design. No punchdown tool required; snaps closed when termination is complete.
- Compatible with S/FTP, F/UTP, U/FTP and other common shielded cable types.
Specifications
| RJ45 Jack | |
| Housing: | ABS+PC, UL 94V-0, with optional color. |
| Bracket Set: | PBT+Glass Fiber UL 94V-0. |
| RJ45 Jack Contac | |
| Material: | Phosphor Bronze with Nickel plated. |
| Finish: | 50 micro-inch Gold plated on Plug contact area. |
| IDC | |
| Hosing: | PC+Glass Fiber, UL 94V-2. |
| Terminal: | Phosphor Bronze with min. 50 micro-inch Tin plated. |
| IDC CAP | |
| IDC CAP: | ABS, UL 94V-0 |
| PCB | |
| PCB: | FR4, UL 94V-0 |
