FTTH Optical Termination BOX IP68
Overview
Nitrotel OTB+ is our solution Handhole, Wall or Pole Mountable IP68 Fiber Termination. It is made with PP+GF (Polypropylene + Glass fibers) and fitted with a rubber gasket. It is also UV resistant, rainfall resistant and antiaging. Standard 16 SC termination installed. Comes with 4 in-out ports, 16 drops, 4 splice trays and 24 SC adapters (options APC or UPC).
Key Features
- Color: Black, Option White
- Capacity 96 Cores (24C × 4PCS Splice Trays)
- Protection Level IP68
- Inlet/outlet 4+16
- Material PP+GF

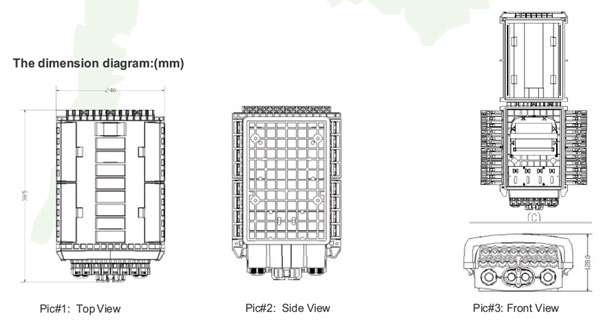

- Dimension: (L*W*D,MM) 385*240*128; 15*9.5*5 ‘’
- Net weight /1 PC(MAX) 3.4 kgs. 7.6Lbs
Specifications
Downloads
Ordering Information
NT-OTB-04P16DX68
