WALL MOUNT CABINETS / DOUBLE SECTION
Overview

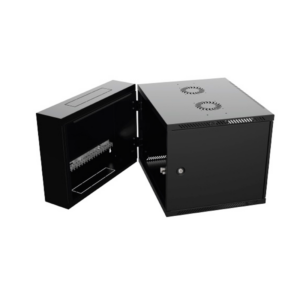

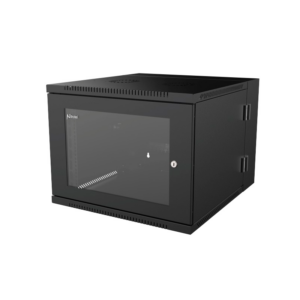

Nitrotel Double Section Wall mount Cabinet width 600 mm and depth 600 or 800 mm. Constructed with heavy duty steel and finished with electrostatic black paint (RAL9005) with options in other colors. Supports up to 112.5 kg (250 Lbs) capacity. Sizes 6 to 25U.
Key Features
- Double -section wall mount cabinet.
- Tempered glass front door with 180° turning radius rotatable key lock.
- Adjustable front and rear mounting posts conform to different equipment depth requirements. Dual mounting post with #12-24 threaded holes and square holes for cage nuts.
- Cable entry brush panel on the top cover and knock-outs on the bottom plate.
- Provided with 1 fans with UL cord installed. Additional fan may be provided upon request.
- Easy to wall mount back plate.
- Available in heights from 6u to 25u.
- Fully assembled for quick installation and packaged in a honeycomb carton. Optional space saving flat packaging available upon request

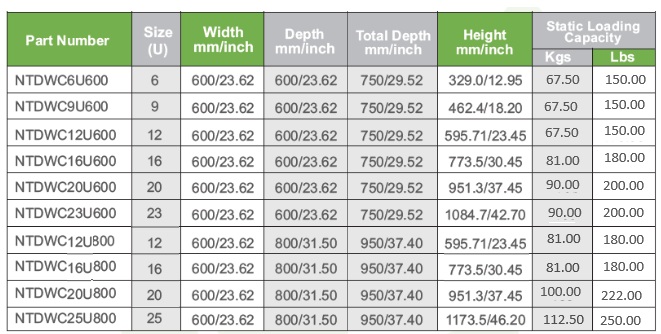

Specifications
Downloads

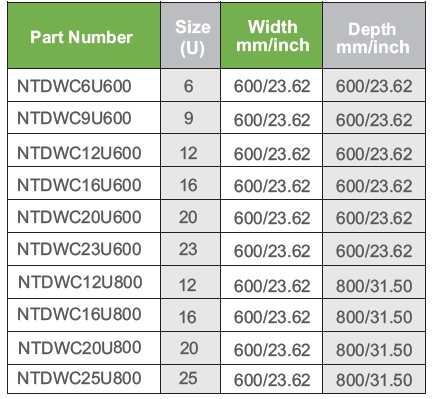

Ordering Information
